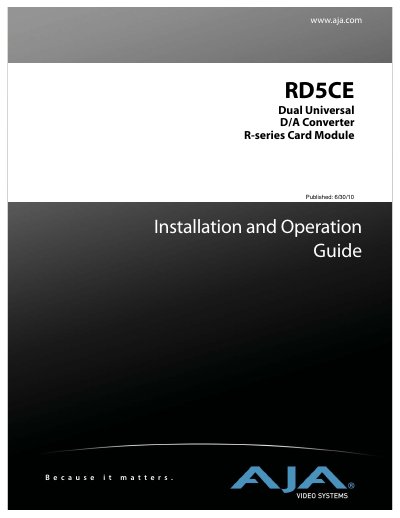

AJA RD5CE Dual Universal D/A Converter Installation and Operation Guide
The AJA RD5CE is a low-cost, dual-channel, universal video D/A converter designed for the AJA R-Series Frames. It supports two completely separate channels of SDI to analog conversion, allowing Channel 1 to output component or composite analog video (including YPbPr, Betacam, RGB, or S-Video) and Channel 2 to output composite or Y video. Both SDI inputs feature reclocked SDI loop-thru outputs.
Read onlineAJA D5CE specifications
| Channels | Dual-channel |
|---|---|
| Inputs | 2 Channels SDI (SMPTE 259M) |
| Outputs Channel 1 | YPbPr-SMPTE, EBU-N10, Betacam, RGB, NTSC/PAL, YC (S-Video) |
| Frequency Response Y | +/- .25dB to 5Mhz |
| Frequency Response C | +/- .25dB to 1.3Mhz |
| Power Consumption | 7.5 watts |
Source: AJA RD5CE Dual Universal D/A Converter Installation and Operation Guide
All AJA D5CE documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What video formats does Channel 1 support?
Channel 1 can output component or composite analog video including YPbPr (SMPTE, EBU-N10), Betacam, RGB, composite or YC (S-Video).
From: AJA RD5CE Dual Universal D/A Converter Installation and Operation Guide
What video formats does Channel 2 support?
Channel 2 can output composite or Y video.
From: AJA RD5CE Dual Universal D/A Converter Installation and Operation Guide
What video formats can the D5CE outputs support?
The outputs support YPbPr, Betacam, RGB, NTSC, PAL, and combinations of composite and Y/C.
How is the D5CE configured for different video formats?
Configuration is done using a 4-switch DIP interface accessible through a cut-out in the bottom of the unit.
