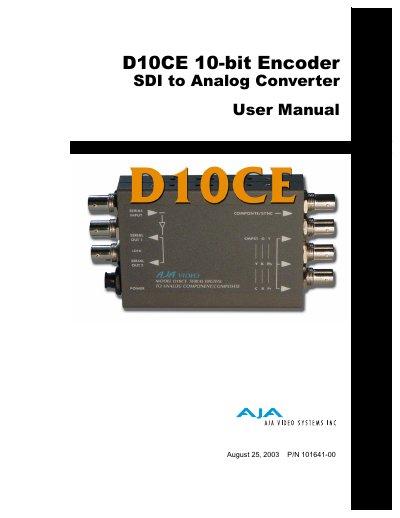

AJA D10CE 10-bit Encoder SDI to Analog Converter User Manual
The D10CE is a converter that transforms Component Serial Digital (SDI) input into simultaneous analog Composite and Component outputs. It features four analog output BNCs plus two equalized, re-clocked SDI loop-through outputs. The device automatically detects 525 or 625 line component digital inputs and can be configured for NTSC, PAL, or component formats using an 8-section DIP switch located on the bottom of the unit.
Read onlineAJA D10CE specifications
| Serial Input Standard | SMPTE 259M |
|---|---|
| SDI Cable Equalization Distance | 300 meter |
| D/A Converters Resolution | 10 bits, 4X oversampling |
| Power Supply Requirement | +5V DC regulated, 4 watt |
| Physical Size | 147 x 79 x 25 mm |
Source: AJA D10CE 10-bit Encoder SDI to Analog Converter User Manual
All AJA D10CE documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How does the D10CE handle different video formats?
The device automatically detects and configures to 525 or 625 line component digital input, then outputs analog NTSC (for 525 line) or PAL (for 625 line).
From: AJA D10CE 10-bit Encoder SDI to Analog Converter User Manual
What is the warranty period for this product?
AJA Video warrants that the product will be free from defects in materials and workmanship for a period of five years from the date of purchase.
From: AJA D10CE 10-bit Encoder SDI to Analog Converter User Manual
What video output formats does the D10CEA support?
The converter supports YPbPr (SMPTE/EBU N10), RGB, composite, and Y/C (S-Video) outputs.
From: AJA D10CEA SDI to Component/Composite Video Converter User Manual
How many audio channels are available on the output?
The device provides 4 channel balanced analog audio outputs.
From: AJA D10CEA SDI to Component/Composite Video Converter User Manual
What power supply is required for the HD10CEA?
The unit requires +5-18VDC power, and the AJA power supply model DWP or DWP-U is recommended.
From: AJA HD10CEA SDI/HD-SDI to Analog Audio/Video Converter Installation and Operation Guide
What happens if the input is HD-SDI?
When supplied with HD-SDI, only component SMPTE or RGB video output is possible from the HD10CEA.
From: AJA HD10CEA SDI/HD-SDI to Analog Audio/Video Converter Installation and Operation Guide
