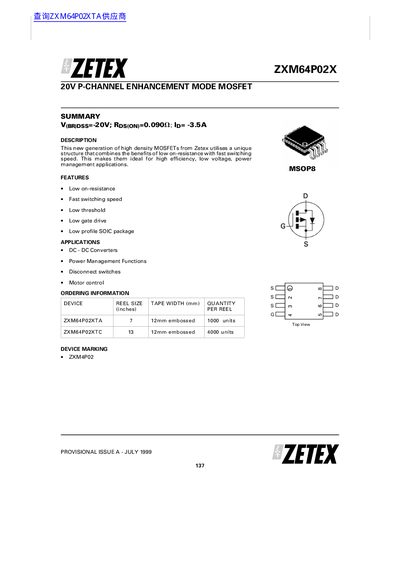

The Zetex ZXM64P02X is a P‑Channel enhancement mode MOSFET with low on‑resistance, fast switching, and detailed electrical and thermal specifications.
The ZXM64P02X is a high‑density P‑Channel enhancement mode MOSFET offered in a low‑profile SOIC package. It features a low on‑resistance of 0.090 Ω, fast switching speeds, low gate drive requirements, and a low threshold voltage, making it suitable for efficient power‑management circuits.
Typical applications include DC‑DC converters, power‑management functions, disconnect switches, and motor‑control circuits. Ordering information provides reel sizes and device markings, and the datasheet includes full thermal, electrical, and switching characteristics for design reference.
| Drain‑Source Voltage (VDS) | -20 V |
|---|---|
| On‑Resistance (RDS(on)) | 0.090 Ω (typ) |
| Gate‑Source Threshold Voltage (VGS(th)) | -0.7 V |
| Junction‑to‑Ambient Thermal Resistance (RθJA) | 70 °C/W |
The device is rated for a maximum drain‑source voltage of –20 V.
Typical on‑resistance is 0.090 Ω.
The gate‑source threshold voltage is –0.7 V.
