This document describes a new generation of high cell density planar MOSFETs from Zetex. These MOSFETs have the advantages of low on-resistance and fast switching speed, making them ideal for high efficiency, low voltage power management applications.

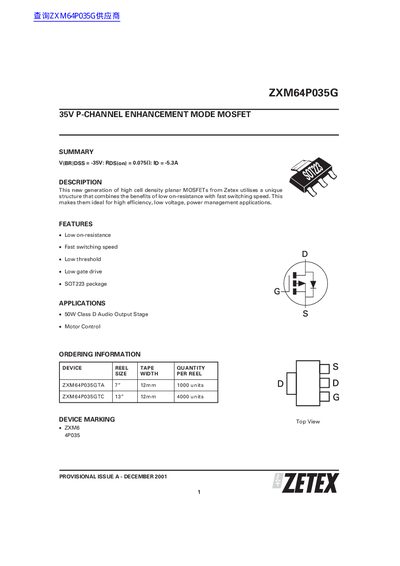

The ZXM64P035G is a 35V P-Channel Enhancement Mode MOSFET designed for high efficiency, low voltage power management applications. It utilizes a high cell density planar structure to combine low on-resistance with fast switching speed. The device is available in a SOT223 package and is suitable for applications such as 50W Class D audio output stages and motor control.
| Drain-Source Voltage | -35 V |
|---|---|
| Continuous Drain Current | -5.3 A |
| Power Dissipation | 2.0 W |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | SOT223 |
| Static Drain-Source On-State Resistance | 0.075 Ohm |
The device is ideal for high efficiency, low voltage power management applications, specifically 50W Class D Audio Output Stages and Motor Control.
The maximum operating and storage temperature range is from -55 to +150 °C.
