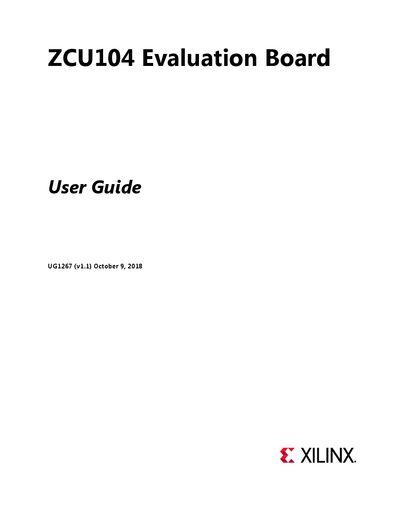

The Xilinx ZCU104 Evaluation Board User Guide provides setup instructions, component descriptions, and specifications for the ZCU104 board.
The ZCU104 Evaluation Board is a development platform built around the Xilinx Zynq UltraScale+ MPSoC XCZU7EV device. It offers high‑speed DDR4 memory, FMC expansion, multiple high‑speed transceivers, and a rich set of peripheral interfaces for vision, AI, and embedded applications.
This guide covers board features, mechanical specifications, power and environmental limits, detailed component descriptions, configuration options (JTAG, Quad SPI, SD, USB), and references to additional Xilinx resources and regulatory information.
| Height | 5.90 inch (14.98 cm) |
|---|---|
| Length | 7.05 inch (17.91 cm) |
| Thickness | 0.062 inch ±0.005 inch (0.157 cm ±0.0127 cm) |
| Operating Temperature (Operating) | 0 °C to +45 °C |
| Operating Temperature (Storage) | -25 °C to +60 °C |
| Operating Voltage | +12 VDC |
| Humidity | 10 % to 90 % non‑condensing |
| PS DDR4 Memory | 64‑bit component (4 × 16‑bit) |
The board operates from 0 °C to +45 °C and can be stored from –25 °C to +60 °C.
The ZCU104 board requires a +12 VDC power supply.
The block diagram is shown in Figure 1‑1 of Chapter 1, titled “ZCU104 Evaluation Board Block Diagram”.
