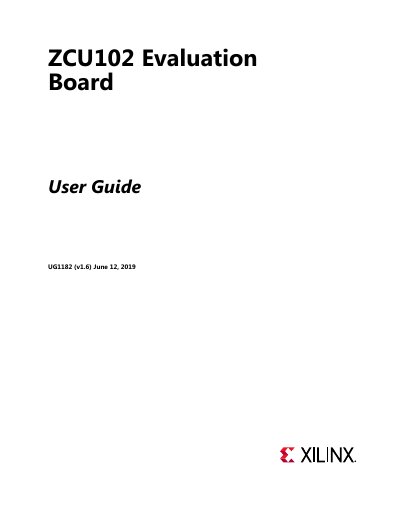

This user guide covers the setup, configuration, and component descriptions for the Xilinx ZCU102 Evaluation Board based on the Zynq UltraScale+ MPSoC.
The ZCU102 is a general-purpose evaluation board designed for rapid prototyping based on the Zynq UltraScale+ XCZU9EG-2FFVB1156E MPSoC. It features high-speed DDR4 interfaces, FMC expansion ports, multi-gigabit serial transceivers, and various peripheral interfaces to support flexible user designs. The board supports configuration via QSPI, SD card, JTAG, and USB-to-JTAG bridge methods.
| Operating Temperature | 0°C to +45°C |
|---|---|
| Storage Temperature | -25°C to +60°C |
| Operating Voltage | +12 VDC |
| Board Width | 9.350 in. (23.749 cm) |
| Board Length | 9.600 in. (24.384 cm) |
| Board Thickness | 0.104 in. (0.2642 cm) |
| Logic Cells | 599,550 |
| CLB Flip-Flops | 548,160 |
The board operates within a temperature range of 0°C to +45°C.
Configuration can be performed via QSPI, SD card, JTAG with PC4 header, JTAG with Arm 20-pin header, or USB-to-JTAG Bridge.
The board requires an operating voltage of +12 VDC.
