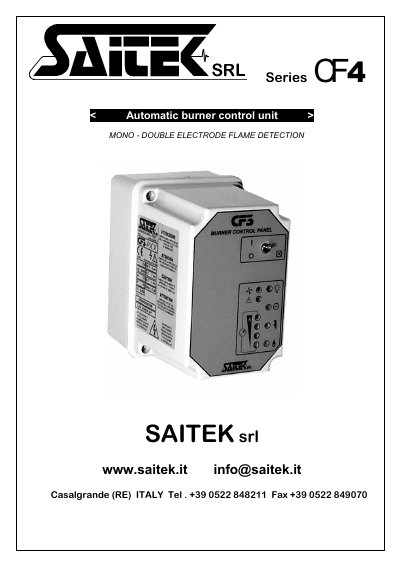

This user manual covers the installation, wiring, commissioning, operation checks, and fault rectification for the SAITEK CF4 automatic burner control unit.
The SAITEK CF4 is an automatic burner control unit designed for mono or double electrode flame detection in accordance with standard EN 298. It is intended for intermittent gas burners used in industrial thermal processes such as metals, glass, ceramic, plastic, and chemical applications, as well as atmospheric burners for general heating.
The document provides detailed instructions on assembly positions, recommended cable lengths (max 10m for ionization, max 5m for ignition), wiring diagrams, and commissioning procedures. It also includes a troubleshooting guide for common issues such as failed ignition sparks, gas flow problems, and detection failures.
| Flame Detection Standard | EN 298 |
|---|---|
| Detection Type | Mono or Double Electrode |
| Ionization Cable Max Length | 10 m |
| Ignition Cable Max Length | 5 m |
| Max Current for Solenoid Valve | 1A |
You must turn off the appliance by means of the ON button in order to reset and restart it.
The manual states that the ionization cable should have a maximum length of 10 meters.
The outlet power for the solenoid valve and ignition transformer must not exceed a maximum current of 1A.
To ensure the ignition spark appears, the distance between the electrode and the burner body must be set to a maximum of 2 mm.
