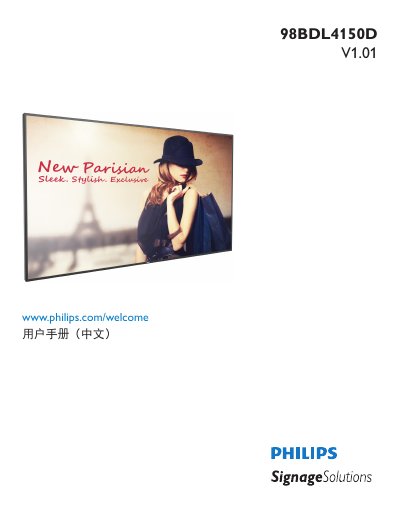

The Philips 98BDL4150D monitor user manual provides safety guidelines, installation steps, operation instructions, and technical specifications.
This manual covers safety precautions, proper handling, and maintenance of the Philips 98BDL4150D public‑information display. It explains how to install the unit, connect power and signal cables, and use the on‑screen menu and remote control. Compliance statements for EU, FCC, and other regions are also included.
Technical specifications such as screen size, resolution, brightness, power consumption, and environmental limits are listed, along with warranty and recycling information for end‑of‑life disposal. This manual is written in Chinese.
| Screen size (effective area) | 247.7 cm / 97.5 in |
|---|---|
| Aspect ratio | 16:9 |
| Resolution | 3840 × 2160 (4K) |
| Brightness (typical) | 500 cd/m² |
| Contrast ratio (typical) | 1300:1 |
| Maximum power consumption | 715 W |
| Typical power consumption | 520 W |
| Input voltage | 100‑240 V, 50‑60 Hz, 8.0 A |
| Weight (without stand) | 91.4 kg |
| Operating temperature range | 0 °C – 40 °C |
| Operating humidity range | 20 % – 80 % RH |
Remove the fuse cover, take out the existing fuse, and install a BS 1362 5 A fuse approved by A.S.T.A. or BSI, then replace the cover.
