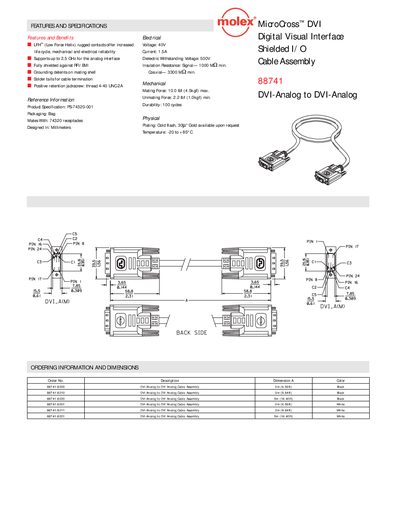

MicroCross™ DVI Digital Visual Interface Shielded I/O Cable Assembly 88741 DVI-Analog to DVI-Analog is a DVI Digital Visual Interface Shielded I/O Cable Assembly by MicroCross. It features LFH™ (Low Force Helix) rugged contacts that offer increased life cycle, mechanical and electrical reliability, and supports up to 2.5 GHz for the analog interface.
The 88741 is a DVI‑Analog to DVI‑Analog connector featuring LFH™ low‑force helix contacts for increased life cycle and reliability. It supports up to 2.5 GHz analog bandwidth, is fully shielded against RFI/BVI, and includes grounding detents on the mating shell.
Key specifications include a 40 V voltage rating, 1.54 A current capability, 500 V dielectric withstanding voltage, and a temperature range of –20 °C to +85 °C. Mechanical data list a 10 lbf (4.5 kgf) maximum mating force, 2.2 lbf (1.0 kgf) minimum unmating force, and 100‑cycle durability. Ordering information and dimensions are provided for the 88741 part number.
| Voltage | 40 V |
|---|---|
| Current | 1.54 A |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance (Signal) | 1000 MΩ min |
| Insulation Resistance (Axial) | 3300 MΩ min |
| Mating Force | 10.0 lbf (4.5 kgf) max |
| Unmating Force | 2.2 lbf (1.0 kgf) min |
| Operating Temperature | -20 °C to +85 °C |
| Retention Jackscrew Thread | 4‑40 UNG‑2A |
The connector is rated for 40 V.
It operates from –20 °C up to +85 °C.
The maximum mating force is 10.0 lbf (4.5 kgf).
