The 88741 DVI-Digital/Analog to DVI-Digital/Analog Single Link TMDS is a digital and analog interface cable assembly that supports up to 1.65 Gbs of bandwidth and up to 2.5 GHz for the analog interface.

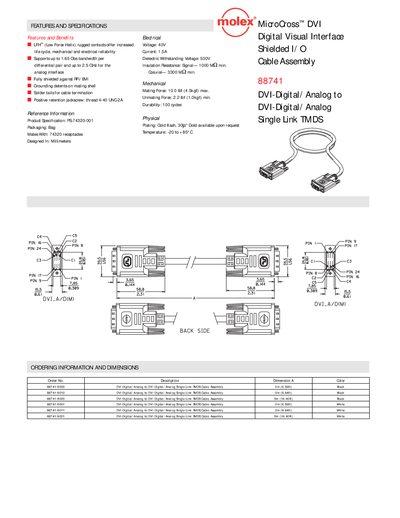

The Molex PS-74320-001 is a DVI‑Digital/Analog to DVI‑Digital/Analog single‑link TMDS cable assembly. It features LFH™ low‑force helix contacts for increased life cycle and reliability, full shielding against RFI/EMI, grounding detents, and a positive retention jackscrew.
Technical specifications include up to 1.65 Gbps bandwidth per differential pair, 2.5 GHz analog bandwidth, 40 V voltage rating, 1.54 A current rating, and a temperature range of –20 °C to +85 °C. Ordering numbers such as 8741‑9000 and 88741‑9010 define different cable lengths and colors.
| Analog interface bandwidth | 2.5 GHz |
|---|---|
| Voltage rating | 40 V |
| Dielectric Withstanding Voltage | 500 V |
The cable is rated for 40 V.
