molex's european terminal blocks, including 3.5mm fixed printed circuit board terminal blocks, 5.0mm economical screw terminal blocks, 5.08mm ultra-thin printed circuit board terminal blocks and 5.08mm ese single (fixed) terminal blocks.
The Eurostyle Terminal Strip series from Molex offers a range of printed circuit board (PCB) terminal blocks in 3.5 mm, 5.0 mm, and 5.08 mm pitches. Features include UL and CSA ratings, RoHS compliance, and options for different current and voltage capacities.

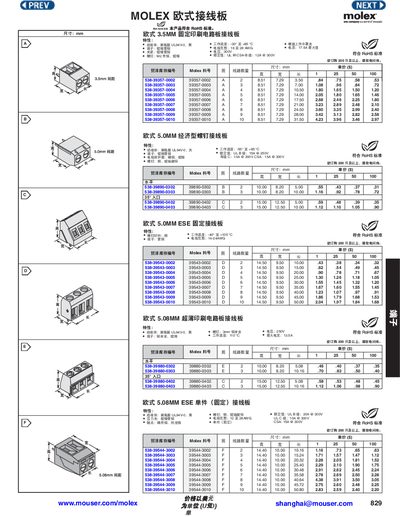

The document lists part numbers, dimensions, and recommended ordering quantities (minimum 200 pieces). It also provides operating temperature ranges, current ratings, and voltage ratings for each series, helping designers select the appropriate terminal strip for their applications. This manual is written in Chinese.
| Operating temperature | -30 °C to 465 °C |
|---|---|
| Maximum current (3.5 mm series) | 17.5 A |
| Voltage rating (3.5 mm series) | 12 A @ 300 V |
| RoHS compliance | Yes |
| Current rating (5.0 mm series) | 10 A @ 300 V CSA |
| Current rating (5.08 mm series) | 20 A @ 300 V |
The terminal strip operates from –30 °C up to 465 °C.
Yes, the product complies with RoHS standards.
The 3.5 mm series is rated for a maximum of 17.5 A.
Orders should be for 200 pieces or more.
