Technical specifications for Micron 9300 Series PCIe NVMe SSDs, including performance, endurance, power and environmental ratings.
The Micron 9300 Series PCIe NVMe SSDs are high‑performance enterprise solid‑state drives that use Micron’s 3D TLC NAND flash and a Gen3 x4 PCIe interface. They are offered in PRO and MAX endurance classes with capacities from 3.2 TB up to 15.36 TB and feature full power‑loss protection, SMART monitoring and hot‑plug capability.

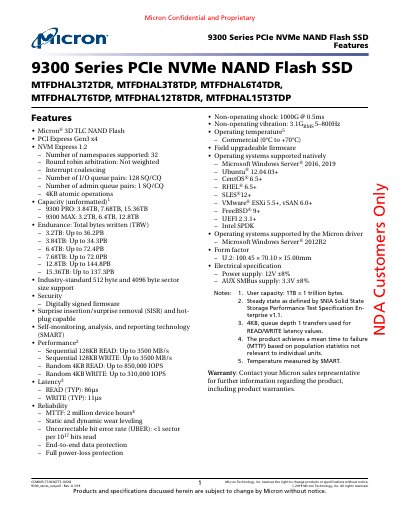

The datasheet provides detailed information on drive performance (up to 3500 MB/s sequential read/write, 850 k IOPS random read), endurance (up to 144.8 PB TBW), electrical specifications (12 V ±8 % supply, 3.3 V AUX), mechanical dimensions (U.2 2.5" form factor) and compliance with global regulatory standards.
| Interface | PCI Express Gen3 x4, NVMe 1.2 |
|---|---|
| Flash Type | 3D TLC NAND |
| Sequential Read Speed | Up to 3500 MB/s |
| Sequential Write Speed | Up to 3500 MB/s |
| Random Read IOPS (4 KB) | Up to 850,000 IOPS |
| Random Write IOPS (4 KB) | Up to 310,000 IOPS |
| Endurance (TBW) – 3.84 TB PRO | 34.3 PB |
| Power Supply Voltage | 12 V ±8 % (main), 3.3 V ±8 % (AUX) |
| Dimensions (U.2 form factor) | 100.45 mm × 70.10 mm × 15.00 mm |
| MTTF | 2 million hours |
The drive can achieve up to 3500 MB/s sequential read at 128 KB transfer size.
It uses a 12 V supply (±8 %) for the main rail and a 3.3 V AUX supply (±8 %).
