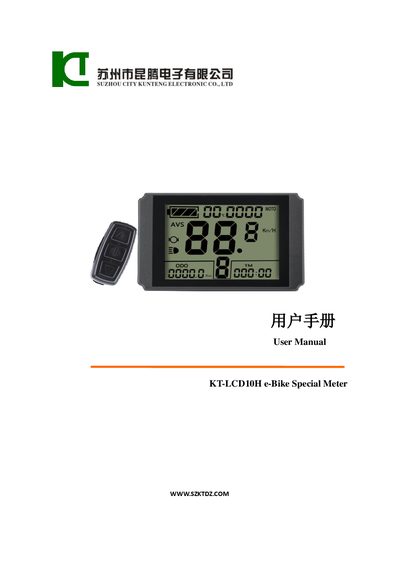

KT KT-LCD 10H e-Bike Meter User Manual

About this manual

The KT KT-LCD 10H is an electric bicycle meter designed to display vehicle status and controls. It supports multiple supply voltages (24V, 36V, 48V) and features a digital interface for trip time, speed, distance, battery capacity, motor temperature, and environment temperature. The device includes buttons for navigation and function activation, such as power assist ratio switching and cruise control.

What's inside

• Outlook and Size
• Wiring Schematic
• Installation Instruction
• Function Overview
• Display Content
• Button Definition
• Normal Operation
• Parameter Setting
• Error Code Display
• Parameter Copy

Specifications

Frequently asked questions

What happens if there is no button operation for more than 1 minute during parameter setting?

The meter will automatically return to display 1, and the original parameters will be saved.

Can the meter parameters be copied to another unit?

Yes, parameters can be copied using a special wiring cable, but the power-on password and meter attributes cannot be copied.

How do you exit the parameter setting environment?

Hold the button (SW) long for about 2 seconds to exit the setting environment and return to display 1.
