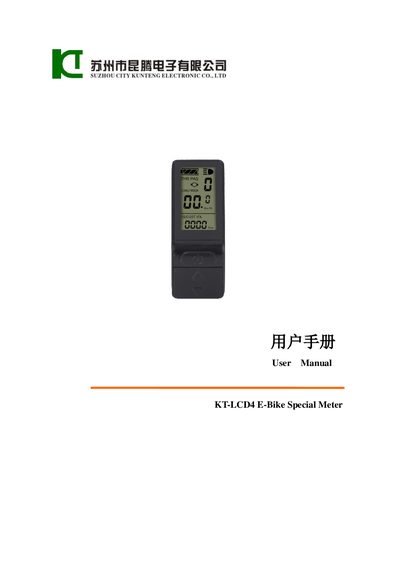

KT LCD 4 E-Bike Special Meter User Manual

The KT LCD 4 user manual provides installation, operation, parameter settings, and troubleshooting for the e‑bike special meter.

Brand: K&T
Category: Vehicle Accessories
Document type: User Manual
Language: English
Pages: 45
File format: PDF
File size: 1.5 MB
Published: 06 October, 2026
Updated: 06 October, 2026
Model: KT-LCD 4
MD5 checksum: 7F884ED20690E23A5E3D8FB92C64C8CD
PDF: KT LCD 4 E-Bike Special Meter User Manual PDF

About this manual

This manual explains how to install the KT‑LCD 4 meter on an electric bicycle, describes its physical dimensions, wiring, and mounting requirements. It also outlines the meter’s functions, display contents, button definitions, and normal operation procedures.

Detailed sections cover parameter configuration (P, C, and L parameters), error code interpretation, parameter copying, and user setting notes, helping users customize the meter for their specific bike and motor setup.

What's inside

Preface
Outlook and Size
Installation Instruction
Function Overview
Display Content
Button Definition
Parameter Settings
Error Code Display
User Setting Note
Version Information

Specifications

Handlebar diameter	Φ 22.2 mm
Supported supply voltages	24 V, 36 V, 48 V
Battery capacity indicator	Available

Frequently asked questions

How do I turn the meter on or off?

Press and hold the SW button for a few seconds; a long press powers the meter on, and another long press powers it off.

Download PDF (1.5 MB)
