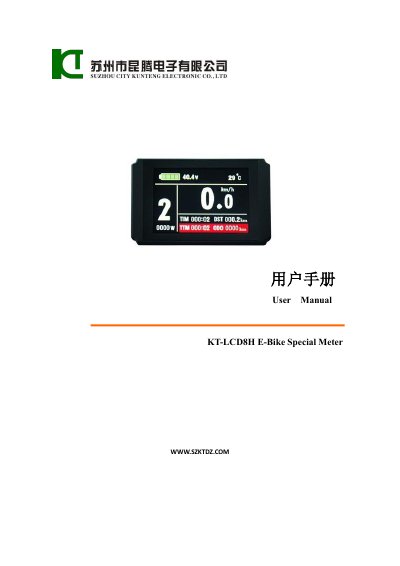

The KT KT-LCD 8H user manual provides installation, operation, and parameter settings for the E‑Bike special meter.
This manual explains how to install the KT‑LCD 8H meter on an electric bicycle, including wiring, handlebar mounting options, and initial power‑on procedures. It also describes the main material, color, and physical dimensions of the meter and button box.
The document details all functional features such as speed, distance, battery, motor power and temperature displays, as well as user‑adjustable parameters (P, C, L settings), parameter copying, and error‑code handling. It includes step‑by‑step instructions for button operations, backlight control, cruise function, and automatic shutdown settings.
| Handlebar diameter (large) | 31.8 mm |
|---|---|
| Handlebar diameter (small) | 22.2 mm |
| Supported supply voltages | 24 V, 36 V, 48 V |
| Speed display units | km/h or MPH |
| Temperature display units | ℃ or ℉ |
Press and hold the SW button for a few seconds; a long press powers the meter on, and another long press powers it off.
After powering on the meter, hold the UP and DOWN buttons together for about two seconds; the meter will indicate that the parameter copy is complete.
