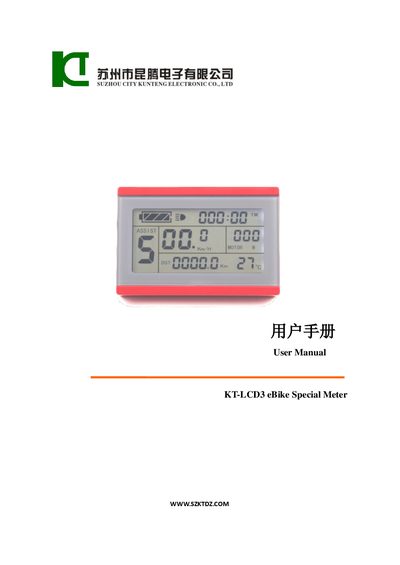

User manual for the KT-LCD3 eBike special meter covering installation, operation, display functions and parameter settings.
The KT-LCD3 eBike Special Meter manual provides step‑by‑step installation instructions, wiring diagrams and physical dimensions for mounting the meter on an electric bicycle handlebar. It also describes the main material, color options and the three‑button interface used to control the device.
The guide details all display screens, button definitions, normal operation modes, and how to configure parameters such as power‑assist ratios, cruise function, backlight brightness and controller voltage limits. Error codes, data clearing and user‑defined project settings are also explained.
| Handlebar diameter (large) | 31.8 mm |
|---|---|
| Handlebar diameter (small) | 22.2 mm |
| Supported supply voltages | 24 V, 36 V, 48 V |
| Battery capacity indicator | Displayed on screen |
| Motor power and temperature display | Shown on screen |
