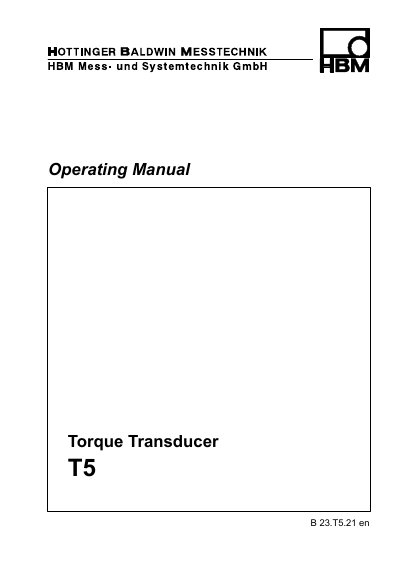

This operating manual covers safety, mounting, electrical connection, maintenance, and technical specifications for the HBM T5 Torque Transducer.
The HBM T5 Torque Transducer is designed for measuring static and dynamic torques in control and regulation tasks. It utilizes a strain gauge measuring system with a sensitivity of 2mV/V and accepts a supply voltage between 0.5V and 12V. The device is suitable for qualified personnel and requires specific mounting positions to ensure accurate frictional torque transfer.
| Measuring system | Strain gauge measuring system |
|---|---|
| Sensitivity | 2mV/V |
| Rated supply voltage | 0.5V...12V |
| Accuracy class | 0.1 |
| Protection class | IP50 |
Yes, the torque transducers may be mounted in any position, provided the flanged plug is not pointed downwards during horizontal mounting.
The nominal sensitivity is 2mV/V.
