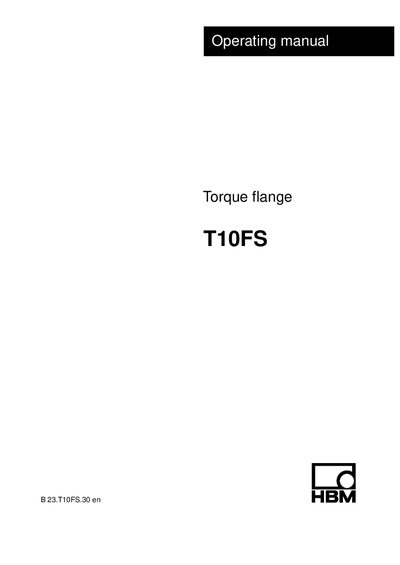

This operating manual covers the installation, calibration, settings, and maintenance of the HBM T10FS torque flange for measuring static and dynamic torque…
The HBM T10FS torque flange is designed for measuring static and dynamic torques on fixed or rotating shafts, as well as establishing rotation speed and direction. It features a maintenance-free design due to the absence of bearings and slip-rings, utilizing non-contact excitation voltage and signal transmission. The device is available in versions KF1, SF1, and SU2, differing in electrical inputs and outputs, and is suitable for nominal torques ranging from 500 N⋅m to 10 kN⋅m.
| Accuracy class | 0.1 |
|---|---|
| Nominal torque range | 500 N⋅m up to 10 kN⋅m |
| Maximum speed | 22 000 min⁻¹ |
| Frequency output voltage | 10 V |
| Frequency output tolerance | ±0.1% |
| Voltage output tolerance | ±0.2% |
| Measurement frequency range | 0 ... 1000 Hz |
The torque flange exists in versions KF1, SF1, and SU2, which differ in their electrical inputs and outputs on the stator.
Yes, due to its construction without bearings and non-contact transmission, the torque flanges are maintenance-free.
