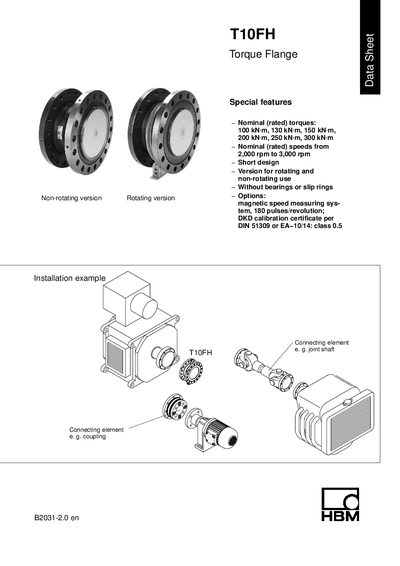

Technical data sheet for the HBM T10FH Torque Flange, covering specifications for rotating and non-rotating versions with various nominal torques.
This document provides detailed technical specifications for the HBM T10FH Torque Flange, available in both rotating and non-rotating versions. The device is designed for measuring nominal torques ranging from 100 kN Vm to 300 kN Vm, with optional magnetic speed measuring systems for the rotating variant.
| Nominal (rated) torque | 100 kN Vm to 300 kN Vm |
|---|---|
| Nominal (rated) speeds | 2,000 rpm to 3,000 rpm |
| Accuracy class | 0.1 |
| Degree of protection | IP 54 |
| Nominal temperature range | +10...+60 °C |
| Mass moment of inertia of the rotor | 2 to 5.2 kg⋅m² |
The nominal (rated) torques are 100 kN Vm, 130 kN Vm, 150 kN Vm, 200 kN Vm, 250 kN Vm, and 300 kN Vm.
The nominal (rated) speeds range from 2,000 rpm to 3,000 rpm.
The maximum permissible static eccentricity is 0.2 mm without the speed measuring system and 0.1 mm with the speed measuring system.
