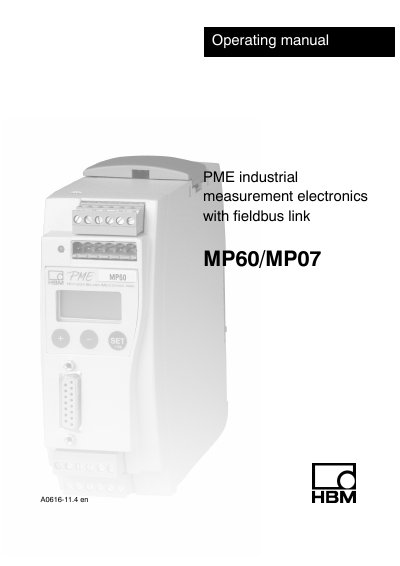

Operating manual for HBM PME‑MP60/MP07 measurement modules with safety instructions, installation, configuration and specifications.
The HBM MP60 and MP07 modules are industrial measurement electronics designed for frequency and torque transducer applications. The manual provides safety guidelines, mounting instructions, wiring diagrams, and detailed configuration procedures using DIP switches and the PME Assistant software.
It also contains a full list of technical specifications, CAN interface description, error messages, and a keyword index to help qualified personnel install, commission, and maintain the modules safely and correctly.
| Supply voltage range | 18 – 30 V DC |
|---|---|
| Accuracy class | 0.05 % |
| Resolution (frequency measurement) | 0.01 % of measured value |
The modules must be powered with a supply voltage between 18 V and 30 V DC.
The instrument complies with DIN EN 61010 Part 1 (Protection Class I).
