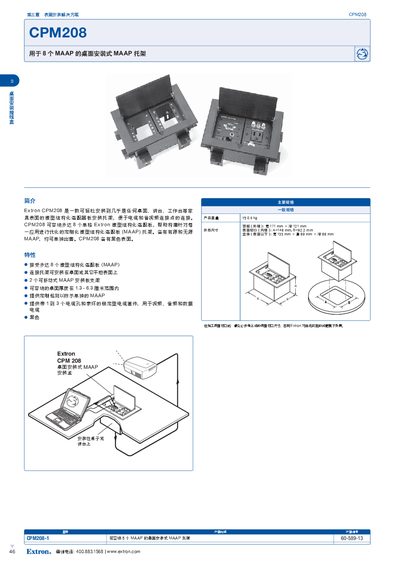

The Extron CPM208 desktop MAAP rack holds up to eight micro‑structured adapter boards and provides dimensions, weight, and installation details.
The Extron CPM208 is a compact desktop‑mount rack designed for mounting up to eight Extron micro‑structured adapter boards (MAAP). It can be installed on any flat surface such as a desk, podium, or workbench, and includes optional active and passive MAAP boards.
Key features include support for desktop thicknesses from 1.3 cm to 6.3 cm, customizable engraving, and a lockable cable kit with 1‑3 cable holes and cable loops for audio, video, and data connections. The rack is finished in black and measures 171 mm × 121 mm on the top plate, with a total weight of about 0.5 kg. This manual is written in Chinese.
| Maximum MAAP boards | 8 |
|---|---|
| Supported desktop thickness | 1.3 cm – 6.3 cm |
| Product weight | ≈ 0.5 kg |
| Top plate outer dimensions | 171 mm × 121 mm |
| Surface cutout inner dimensions | A = 149 mm, B = 92.2 mm |
| Box dimensions (below surface) | 133 mm × 89 mm × 86 mm |
It can accommodate up to eight micro‑structured adapter boards.
The rack weighs approximately 0.5 kg.
It supports desktop thicknesses from 1.3 cm to 6.3 cm.
