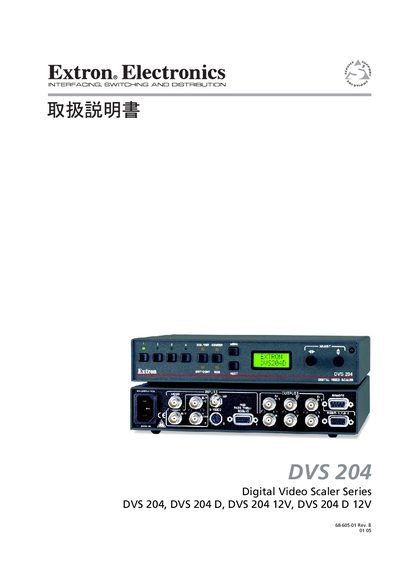

Extron DVS 204 User Manual

The document describes the features and characteristics of the DVS 204 series digital video scaler.

Brand: EXtron
Category: Video Decoder
Document type: User Manual
Language: Japanese
Pages: 62
File format: PDF
File size: 2.4 MB
Published: 06 January, 2012
Updated: 29 September, 2023
MD5 checksum: 8150612AFEC46D591C900A651023C7FC
PDF: Extron DVS 204 User Manual PDF

About this manual

This manual begins with safety warnings and proper handling instructions to prevent fire, electric shock, or injury when using the Extron DVS 204 digital video scaler. It explains how to avoid hazardous conditions such as water ingress, improper ventilation, and unauthorized disassembly.

The guide then covers quick‑start setup, rack‑mount or tabletop installation, video input and output connections, front‑panel controls, image‑adjustment menus, advanced settings, and RS‑232 serial control. Troubleshooting tips, FCC compliance information, and warranty details are also included. This manual is written in Japanese.

What's inside

Safety Instructions
Quick Start
Installation (Rack Mount / Tabletop)
Video Input Connections
Video Output Connections
Front Panel Controls
Image Adjustments
Advanced Settings
Serial Communication (RS‑232)
Troubleshooting

Specifications

Video Input 2	Component video signal
Video Input 3	8‑bit video signal
Video Input 4	RGB pass‑through / RGBS signal
SDI Input	BNC connector (DVS 204D model only)

Frequently asked questions

What rack‑mount option is required to install the DVS 204 in a rack?

Use the optional rack‑mount kit supplied by Extron to securely attach the unit to a rack.
