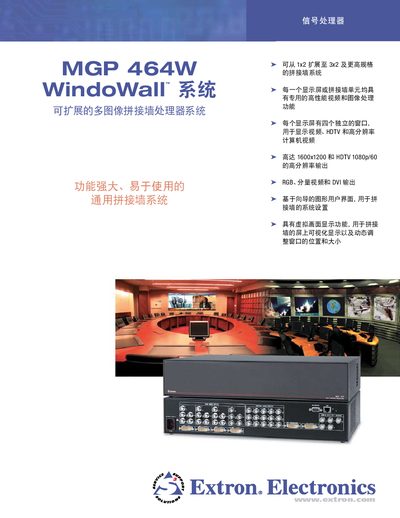

The MGP 464W WindoWall system is a powerful, versatile and easy-to-use multi-display video wall system. It features a scalable architecture that ensures optimum performance and reliability. The WindoWall Control Station software and MGP 464W Multi-Image Processor work together to control the video wall system and create presentations with multiple independent images, HDTV and video windows.
The MGP 464W WindoWall system is a scalable multi‑image video wall solution that equips each display or wall unit with a dedicated high‑performance video and graphics processor. Each processor can drive up to four independent windows, supporting resolutions up to 1600×1200 and HDTV 1080p/60, with RGB, component, S‑video, composite and optional DVI inputs.
The WindoWall console software offers a wizard‑driven graphical interface for system configuration, virtual screen layout, and window management. Users can create and store up to 128 custom window presets, control devices via TCP/IP, RS‑232/RS‑422, or Ethernet, and adjust pixel phase and other parameters for optimal image quality. This manual is written in Chinese.
| Maximum video resolution | 1600×1200, HDTV 1080p/60 |
|---|---|
| Number of windows per processor | 4 |
| Memory presets | 128 |
| Power supply | 100 VAC–240 VAC, 50/60 Hz, 30 W |
| Physical dimensions (per unit) | 3.4 in L × 17.5 in W × 12.0 in H (2U rack height) |
| Weight | 8.5 lb (3.9 kg) |
| Operating temperature range | +32 °F to +122 °F (0 °C to +50 °C) |
| Ethernet data rate | 10/100 Base‑T |
| Serial control ports | RS‑232 or RS‑422 |
The MGP 464W supports up to 1600×1200 resolution and HDTV 1080p/60 output.
The console can store up to 128 custom window presets.
