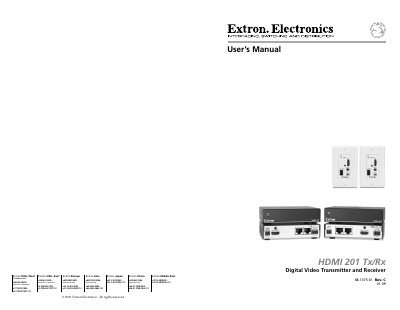

This is an HDMI 201 Tx/Rx user manual
This manual covers safety warnings, grounding requirements, and handling precautions for the Extron HDMI 201 Tx/Rx system. It explains how to mount the units in various configurations, connect power and signal cables, and configure RS‑232 or IR control pass‑through.
The document also details technical specifications such as power consumption, transmission distances for different video resolutions, audio routing capabilities, and troubleshooting tips. Appendices list part numbers, accessories, and connector pin assignments.
| Power Supply | 12 V 0.4 A MAX |
|---|---|
| Maximum UTP Transmission Distance (720p/1080i/XGA) | 200 ft (60 m) |
| Maximum UTP Transmission Distance (1080p/UXGA) | 100 ft (30 m) |
| Maximum STP Transmission Distance (1080p/UXGA) | 125 ft (38 m) |
| Audio Routing (AD models) | Unbalanced stereo audio |
| Control Communications Pass‑Through | Bidirectional RS‑232 or IR signals |
The units operate from a 12 V power supply with a maximum current draw of 0.4 A.
Only the AD (Decora) models route unbalanced stereo audio; the non‑Decora models do not handle audio.
Yes, the third pin is a grounding pin and must not be bypassed or disabled.
