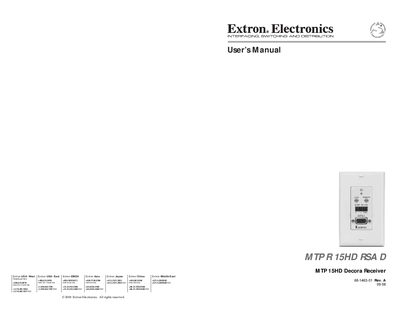

Extron MTP 15HD RSA D Receiver User Manual

This is a user's manual for the Extron MTP 15HD Decora Receiver

Brand: EXtron
Category: Audio-Video Decoder
Document type: User Manual
Language: English
Pages: 19
File format: PDF
File size: 1.3 MB
Published: 29 January, 2012
Updated: 30 September, 2023
MD5 checksum: E7618DE6E943E55DFEF7DB7774C61FB1
PDF: Extron MTP 15HD RSA D Receiver User Manual PDF

About this manual

This user manual covers safety symbols, warranty information, and handling precautions for the Extron MTP 15HD RSA D Decora receiver. It explains the required UL‑listed wall box, grounding, and power‑supply requirements.

Installation guidance includes wall‑box preparation, mounting, and connector wiring. The document describes audio/RS‑232 cable termination, power‑supply wiring, receiver settings, skew compensation, and provides detailed technical specifications and part numbers.

What's inside

Introduction
Installation and Operation
Connections and Settings
Power Supply Wiring
TP Cable Termination
Audio/RS‑232 Cable Termination
Receiver Considerations
Skew Compensation
Specifications
Reference Information

Specifications

Power supply input voltage	100‑240 VAC, 50/60 Hz
RS‑232 baud rate support	up to 38,400 bps
Maximum video distance (Composite)	800 ft

Frequently asked questions

How should the receiver be powered?

Use the supplied external 12 V power supply, which accepts 100‑240 VAC at 50 Hz or 60 Hz.

Download PDF (1.3 MB)
