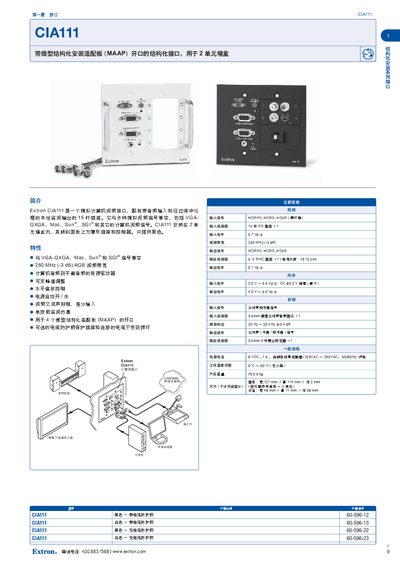

The Extron CIA111 Interface Installation Manual provides specifications, features, and wiring details for the analog video interface with MAAP openings for…
The Extron CIA111 is an analog computer video interface that supports VGA‑QXGA, Mac, Sun®, and SGI® signals. It is installed in a 2‑unit wall box and includes a 15‑pin HD connector for video and audio input, as well as BNC outputs for video and a 3.5 mm jack for audio.
The manual describes the interface’s key features such as 250 MHz video bandwidth, active audio driver, variable peak adjustment, horizontal offset control, auto power, and four MAAP (micro‑structured adapter plate) openings. Optional cable‑protective handles are also listed. This manual is written in Chinese.
| Video Input Signal | RGBHV, RGBS, RGsB (with loop-through) |
|---|---|
| Input Connector | 15‑pin HD socket ×1 |
| Input Level | 0.7 Vp‑p |
| Output Signal | RGBHV, RGBS, RGsB |
| Output Connector | 5 BNC sockets ×1 (≈10 cm cable) |
| Output Level | 0.7 Vp‑p |
| Sync Input Level | 2.0 V‑5.5 Vp‑p, DC±0.2 V |
| Audio Input Signal | Stereo unbalanced |
| Audio Input Connector | 3.5 mm mini‑stereo jack ×1 |
| Frequency Response | 20 Hz‑20 kHz ±0.4 dB |
| Power Supply Voltage | 9 VDC, 1 A (100‑240 VAC adapter) |
| Operating Temperature Range | 0 °C‑50 °C (no condensation) |
| Weight | ≈0.3 kg |
| Panel Size | 127 mm × 114 mm × 2 mm |
| Device Size | 48 mm × 71 mm × 38 mm |
The CIA111 works with VGA‑QXGA, Mac, Sun®, and SGI® computer video signals.
It provides openings for four micro‑structured adapter plates (MAAP).
It requires a 9 VDC, 1 A supply, supplied by the included 100‑240 VAC adapter.
The video bandwidth is 250 MHz (-3 dB) for RGB signals.
