Extron HSA 200C series is a compact, fixed configuration, hideaway surface mount junction box suitable for installation on tables or podiums. It features a circular frame design, easy installation, convenient connector insertion and extraction, durable pneumatic and mechanical locking mechanism design, etc.
The Extron HSA 200C (and HSA 200CE) is a hideaway surface‑mount junction box designed for compact, ergonomic installation on desks or podiums. The box features a circular frame and a mechanical lock that, when pressed, lifts the unit to a 49° angle, exposing the connectors.

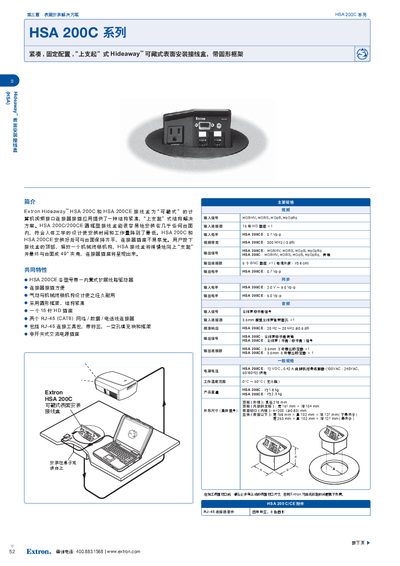

The guide provides common features, key specifications, general dimensions, power requirements, and a list of included accessories such as RJ‑45 kits, BNC connectors, and audio jacks. The HSA 200CE variant adds an internal expansion line driver for video and audio signals. This manual is written in Chinese.
| Video input signal | RGBHV, RGBS, RGsB, RsGsBs |
|---|---|
| Input connector | 15‑pin HD socket ×1 |
| RJ‑45 connectors | Two RJ‑45 (Cat6) ports |
| BNC output connectors | Five BNC sockets ×1 |
| Audio input | 3.5 mm stereo unbalanced jack ×1 |
| Video bandwidth (HSA 200CE) | 300 MHz (-3 dB) |
| Power supply | 12 VDC, 0.42 A (adapter 100‑240 VAC) |
| Operating temperature range | 0 °C – 50 °C (no condensation) |
| Weight (HSA 200C) | ≈1.8 kg |
| Top plate diameter | 216 mm |
Press the top of the box to release the mechanical lock; the unit lifts to a 49° angle, exposing the connectors while staying flush with the desk surface.
Yes, the HSA 200CE model incorporates a built‑in expansion video and audio line driver.
The unit is powered by a 12 VDC supply at 0.42 A, provided by the included universal adapter (100‑240 VAC, 50/60 Hz).
