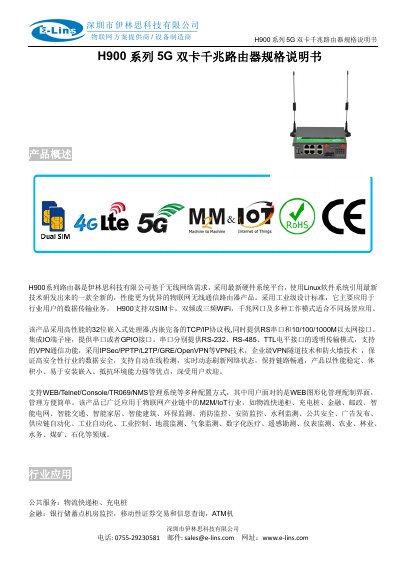

Technical specifications and features for the E-Lins H900 Series 5G dual SIM gigabit router, covering wireless capabilities, interfaces, and industrial…
The E-Lins H900 Series is a high-performance industrial IoT wireless communication router developed by Shenzhen E-Lins Technology Co., Ltd. Designed with industrial-grade standards, it supports dual SIM cards, dual-band or tri-band WiFi, and gigabit Ethernet ports. The device utilizes a high-performance 32-bit embedded processor and is suitable for various industries including logistics, finance, power, and transportation. This manual is written in Chinese.
| Wireless Module | Industrial grade wireless module |
|---|---|
| Processor | Industrial grade 32-bit dual-core communication processor |
| Flash Memory | 16MB (expandable to 1024MB/8Gb) |
| RAM | 256MB (expandable to 512MB/4Gb) |
| Ethernet LAN Port | 1 x 10/100/1000 M RJ45 |
| Ethernet WAN Ports | 4 x 10/100/1000 M RJ45 |
| Power Input Range | DC 5~40V (optional DC 5~60V) |
| Protection | Built-in 1.5KV electromagnetic isolation protection |
It supports 2G/3G/4G/5G networks including specific 5G Sub-6G bands and various 4G FDD and TDD LTE bands.
The device supports desktop installation, wall installation, and 35mm DIN rail installation.
