Technical specifications for the E-Lins H720pp industrial router, featuring dual HSPA+ modules, dual-SIM support, and robust connectivity for IoT applications.

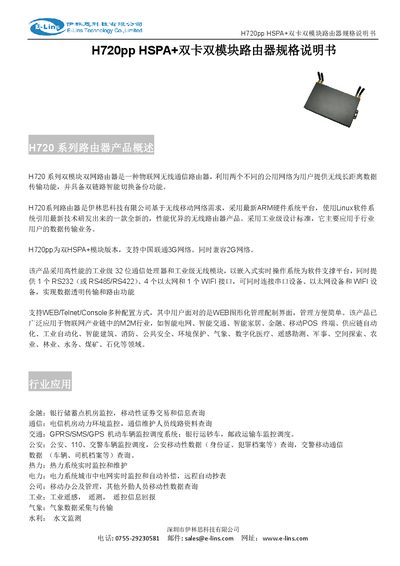

The E-Lins H720pp is an industrial-grade HSPA+ dual-SIM dual-module router designed for IoT wireless communication. It utilizes two different public networks to provide long-distance data transmission and features intelligent dual-link switching for backup. The device is built on a high-performance 32-bit communication processor with a Linux software system, adhering to industrial design standards. This manual is written in Chinese.
| Wireless Modules | Industrial-grade wireless modules (HSPA+) + (HSPA+) Dual modules |
|---|---|
| 3G Frequency Bands | 2100Mhz or 900/2100Mhz or 850/1900/2100Mhz or 850/900/1900/2100Mhz/AWS |
| 2G Frequency Bands | GSM 900/1800Mhz Dual-band or 850/900/1800/1900Mhz Quad-band |
| HSPA+ Downlink Speed | 21Mbps (H) or 14.4Mbps (L) |
| HSPA+ Uplink Speed | 5.76Mbps |
| CPU | Industrial-grade 32-bit communication processor |
| Flash Memory | 8MB (expandable to 64MB/512Mb) |
| RAM | 64MB (expandable to 128MB/1024Mb) |
| Ethernet LAN Ports | 4 x 10/100M RJ45 |
| Ethernet WAN Port | 1 x 10/100M RJ45 |
| Power Input | DC 5~40V (Optional DC 5~50V) |
| Operating Temperature | -35~+75ºC |
| Weight | 705~725g (excluding antennas and mounting parts) |
It supports China Unicom 3G networks (GSM/GPRS/EDGE, WCDMA HSDPA/HSUPA/HSPA/HSPA+) and is compatible with 2G networks.
The device supports intelligent switching where if one card drops the line, it switches to the other card and detects if the first card can recover to switch back.
The metal casing has a protection level of IP30 and provides system security isolation.
