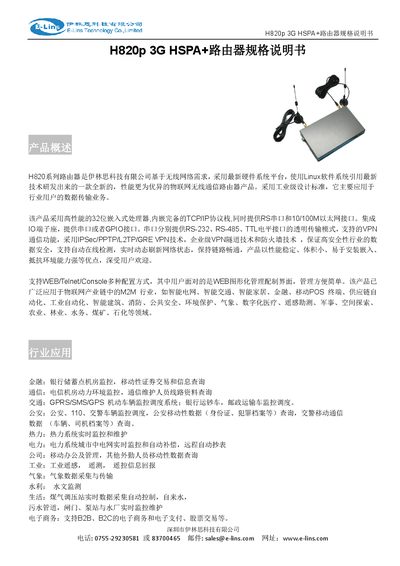

A specification sheet for the E-Lins H820p 3G HSPA+ router, an industrial-grade IoT wireless communication device supporting 2G/3G networks and various…
The E-Lins H820p is an industrial-grade 3G HSPA+ router designed for IoT and M2M applications. It features a high-performance 32-bit embedded processor, a Linux software system, and supports multiple network configurations including 2G GSM/GPRS/EDGE and 3G WCDMA/HSPA/HSPA+. The device is built with a metal casing (IP30 protection) and offers a wide power input range of DC 5~40V (optional up to 50V). This manual is written in Chinese.
| Processor | Industrial grade 32-bit communication processor |
|---|---|
| Memory (Flash) | 8MB (64Mb) (expandable to 64MB/512Mb) |
| Memory (SDRAM) | 64MB (512Mb) |
| Ethernet LAN Ports | 4 x 10/100M RJ45 |
| Ethernet WAN Port | 1 x 10/100M RJ45 |
| Power Input | DC 5~40V (optional DC 5~50V) |
| Operating Temperature | -35~+75ºC |
| Protection Rating | IP30 |
It supports 2G GSM/GPRS/EDGE and 3G WCDMA HSDPA/HSUPA/HSPA/HSPA+ networks.
The router supports IPSec, PPTP, L2TP, GRE, and various encryption methods like WEP, WPA, and WPA2.
