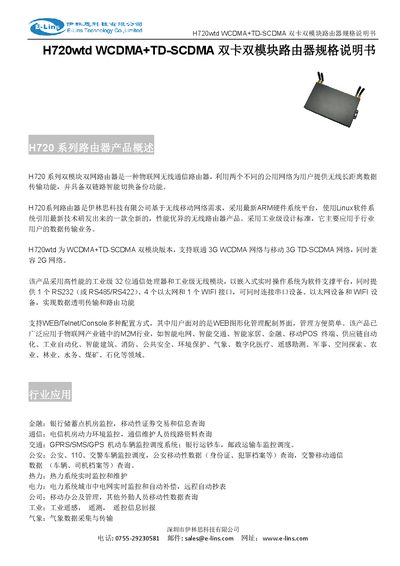

E-LINS H720wtd Dual-SIM Industrial Router Specification Sheet

Specification sheet for the E-LINS H720wtd industrial router, featuring dual WCDMA/TD-SCDMA modules, 4 LAN ports, and support for IoT applications.

Brand: E-Lins
Category: Other Electronics
Document type: Product Leaflet
Language: Chinese
Pages: 8
File format: PDF
File size: 364 KB
Published: 15 October, 2026
Updated: 15 October, 2026
MD5 checksum: A4B777FC0B7903098A668B2346E6BA2C
PDF: E-LINS H720wtd Dual-SIM Industrial Router Specification Sheet PDF

About this manual

The E-LINS H720wtd is an industrial-grade dual-module, dual-SIM wireless router designed for M2M (Machine-to-Machine) industry applications. It utilizes a high-performance 32-bit communication processor running on Linux to provide reliable long-distance data transmission over 2G and 3G networks. This manual is written in Chinese.

What's inside

Product Overview
Industry Applications
Main Function Features
Interface Specifications
Wireless Characteristics
Hardware System Specs
Power Supply
Software & Security

Specifications

RAM	64MB (expandable to 128MB/1024Mb)
Flash Memory	8MB (expandable to 64MB/512Mb)
Ethernet LAN Ports	4 x 10/100M RJ45
Serial Port	1 x RS232 (or RS485)
WiFi Support	802.11b/g/n 300Mhz Dual Antenna MIMO
Power Input Range	DC 5~40V (Optional DC 5~50V)
Operating Temperature	-35 to +75 C

Frequently asked questions

What network standards does the H720wtd support?

It supports WCDMA, TD-SCDMA for 3G, and GSM/GPRS/EDGE for 2G networks.

What is the protection rating of the metal housing?

The device features a metal shell with an IP30 protection level.
