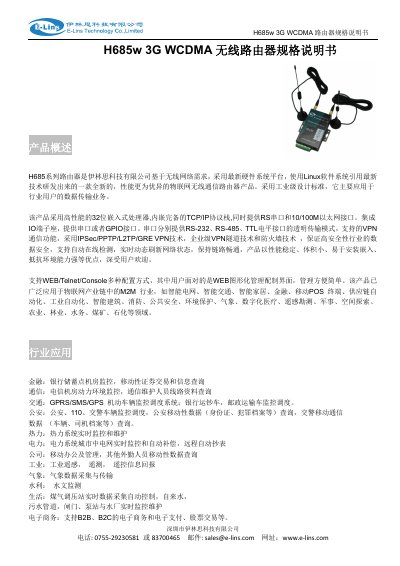

A specification sheet for the E-LINS H685w, an industrial-grade IoT wireless router supporting 2G/3G networks and various interfaces.
The E-LINS H685w is a high-performance IoT wireless communication router designed by Shenzhen E-LINS Technology Co., Ltd. It utilizes a Linux software system on a high-performance 32-bit embedded processor to provide stable data transmission for industrial applications. The device features an integrated TCP/IP protocol stack and supports flexible network selection, including China Unicom's 3G WCDMA networks (HSDPA/HSUPA/HSPA) and China Mobile's GSM/GPRS/EDGE networks. This manual is written in Chinese.
| Processor | Industrial grade 32-bit communication processor |
|---|---|
| Flash Memory | 8MB (expandable to 64MB/512Mb) |
| SDRAM | 64MB (expandable to 512Mb) |
| Ethernet Interfaces | 1 x 10/100M LAN, 1 x 10/100M WAN with PoE support |
| Power Input Range | DC 5~40V (optional DC 5~50V) |
| Operating Temperature | -35 to +75°C |
| Weight | 220g (excluding antenna and mounting parts) |
The device supports WEB, Telnet, and Console configurations, with a graphical WEB interface.
The device operates within a temperature range of -35 to +75ºC.
The router weighs 220g, excluding antennas and mounting parts.
The theoretical download speed for HSDPA networks is 7.2 Mbps.
