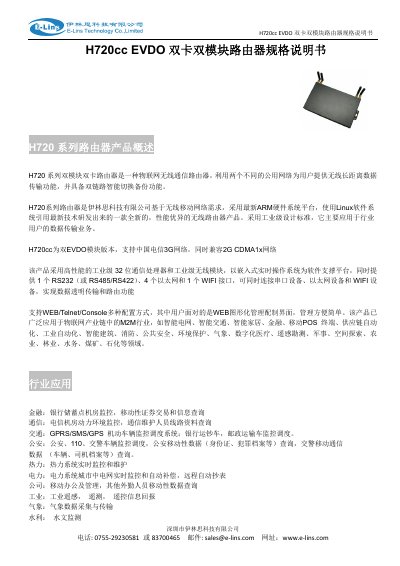

Specification sheet for the E‑Lins H720cc EVDO dual‑SIM, dual‑module industrial IoT router.
The H720cc is an industrial‑grade IoT router from E‑Lins that uses two EVDO modules and dual SIM cards to provide reliable, long‑range data transmission. It runs on a high‑performance 32‑bit communication processor with a Linux‑based OS and offers a metal IP30‑rated enclosure for harsh environments.
Key features include multiple network options (2G CDMA1x, 3G CDMA2000 EVDO Rev0/RevA/RevB, optional 4G), Ethernet and Wi‑Fi interfaces, POE support, extensive VPN and firewall capabilities, and optional GPS, DTU and battery modules for flexible deployments. This manual is written in Chinese.
| CPU | Industrial‑grade 32‑bit communication processor |
|---|---|
| Flash Memory | 8 MB (expandable to 64 MB/512 MB) |
| RAM | 64 MB (expandable to 128 MB/1024 MB) |
| Power Input | DC 5 V–40 V (optional DC 5 V–50 V) |
| Operating Temperature | -35 °C to +75 °C |
| Dimensions | 180 mm × 110 mm × 31 mm (full unit) |
| Weight | 705–725 g (without antenna and accessories) |
| Wireless Modules | Industrial‑grade dual CDMA2000/EVDO modules |
| Theoretical Downlink Bandwidth (EVDO Rev B) | 14.4 Mbps |
It supports dual SIM cards for 2G CDMA1x, 3G CDMA2000 EVDO Rev0/RevA/RevB, and optional 4G WAN connections, as well as Wi‑Fi client and AP modes.
The router accepts a wide DC input range of 5 V to 40 V, with an optional range up to 50 V, and can be powered via POE.
