Technical specifications and features for the E-LINS H700ev industrial-grade dual-SIM 3G/2G wireless router supporting EVDO, WiFi, GPS, and various VPN…

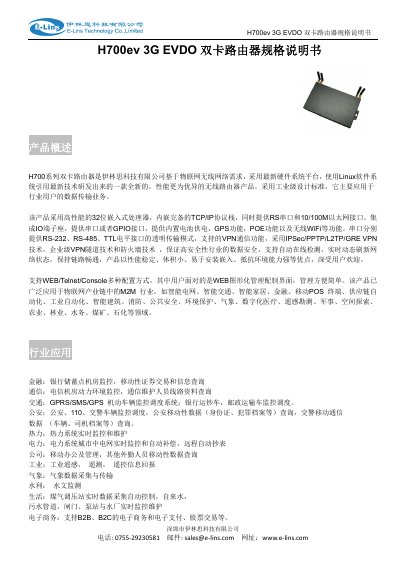

The E-LINS H700ev is a high-performance industrial dual-SIM wireless router designed by Shenzhen E-LINS Technology Co., Ltd. It utilizes an embedded Linux system on a 32-bit processor to provide robust data transmission capabilities for IoT applications. The device supports multiple network interfaces including RS232/RS485, Ethernet, WiFi, and GPS, making it suitable for industries such as smart power grids, traffic monitoring, and industrial automation. This manual is written in Chinese.
| Processor | Industrial grade 32-bit communication processor |
|---|---|
| Memory (Flash) | 8MB (expandable to 64MB/512Mb) |
| Memory (RAM) | 64MB (expandable to 128MB/1024Mb) |
| Power Input | DC 5~40V (optional DC 5~50V) |
| Operating Temperature | -35 to +75°C |
| Weight | 705g (excluding antennas and mounting parts) |
| Ethernet LAN Ports | 4 x 10/100M RJ45 |
| WiFi Standard | 802.11b/g/n 300Mbps MIMO |
It supports 2G CDMA1x and 3G CDMA2000 EVDO Rev0, RevA, and RevB networks.
Yes, it features a dual-SIM design allowing free switching between operators or backup modes.
The device supports IPSec, PPTP, L2TP, and GRE for client connections, and IPSEC for server connections.
Yes, it is designed with an industrial-grade metal shell and IP30 protection rating.
