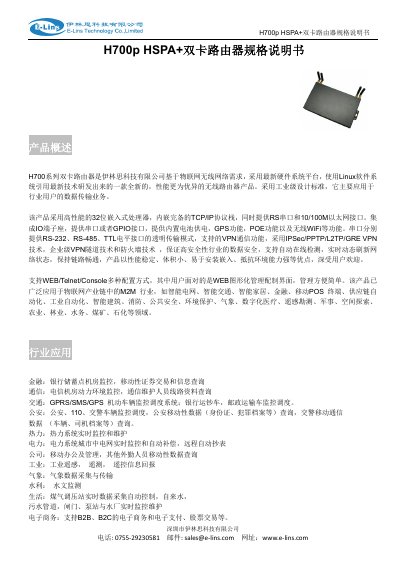

Specification sheet for the E‑Lins H700p HSPA+ dual‑SIM industrial router, detailing hardware, network and environmental features.
The H700p is an industrial‑grade dual‑SIM router from E‑Lins, built on a high‑performance 32‑bit embedded processor and Linux OS. It offers a rich set of interfaces, including RS‑232/RS‑485/TTL serial ports, four 10/100 Mbps LAN ports, a WAN port with POE, optional Wi‑Fi, GPS and a high‑capacity battery, all housed in a metal enclosure with IP30 protection.
Designed for IoT and M2M applications, the router supports 2G/3G/4G cellular networks, HSPA+ data rates, VPN, firewall, and extensive remote‑management features. It is suited for smart grid, transportation, public safety, industrial automation and many other sectors requiring reliable, secure data transmission. This manual is written in Chinese.
| CPU | Industrial‑grade 32‑bit communication processor |
|---|---|
| Flash Memory | 8 MB (64 Mb) (expandable to 64 MB/512 Mb) |
| RAM | 64 MB (512 Mb) (expandable to 128 MB/1024 Mb) |
| Power Input | DC 5‑40 V (optional DC 5‑50 V) |
| Battery | 8000 mAh (dual 4000 mAh cells) |
| Wi‑Fi | 802.11b/g/n 300 Mbps, dual‑antenna MIMO |
| Operating Temperature | -35 °C to +75 °C |
It can operate from –35 °C to +75 °C.
Yes, it includes an internal battery of 8000 mAh (two 4000 mAh cells).
