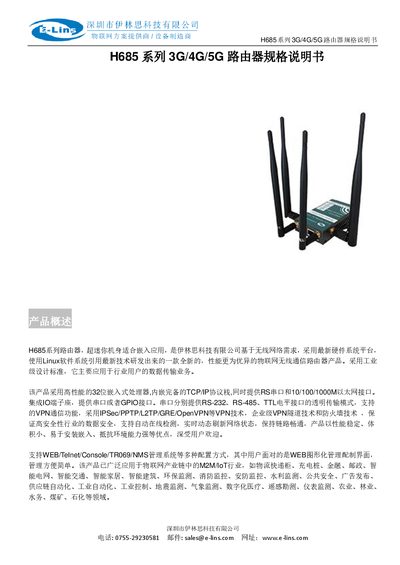

Technical specifications and features for the E-Lins H685 Series 3G/4G/5G industrial router, covering wireless capabilities, hardware, and interfaces.
The E-Lins H685 Series is a compact, industrial-grade 3G/4G/5G router designed for IoT and M2M applications. It features a high-performance 32-bit embedded processor, a Linux software system, and supports multiple network configurations including WAN, WiFi, and serial connections. The device is built with a metal casing for durability and includes enterprise-level security features like VPN support and firewall capabilities. This manual is written in Chinese.
| Flash Memory | 16MB (128Mb), expandable to 512MB/4Gb |
|---|---|
| RAM | 128MB (1Gb), expandable to 512MB/4Gb |
| Power Input | DC 5~40V, optional DC 5~60V |
| Wireless Standards | 5G (SA and NSA), 4G LTE (FDD/TDD), 3G UMTS WCDMA |
| Ethernet Interface | 10/100/1000M Ethernet LAN/WAN ports |
| Protection Level | IP30 |
It supports 2G/3G/4G/5G networks, including 5G SA/NSA, 4G LTE FDD/TDD, and 3G UMTS WCDMA.
The standard power input is DC 5~40V, with an optional version supporting DC 5~60V.
Yes, it supports WiFi 802.11b/g/n in AP, AP Client, Repeater, Bridge, and WDS modes.
It includes enterprise-level VPN tunneling (IPSec/PPTP/L2TP/GRE/OpenVPN) and firewall technologies.
