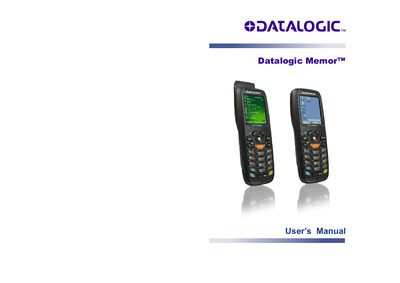

User manual for the Datalogic Memor mobile computer covering setup, operation, maintenance and technical specifications.
The Datalogic Memor User Manual provides detailed instructions for installing, configuring, and using the Memor mobile computer. It includes sections on hardware overview, battery handling, connectivity options (USB, WLAN, Bluetooth, WWAN), and software setup for Windows Mobile and Windows CE.
Technical specifications, safety regulations, and compliance information are listed, along with a glossary and index for quick reference. The manual also describes the various model configurations and the accessories included in the package.
| Dimensions (L×W×H) | 15.2 x 5.5 x 4.0 cm (Batch) / 16.5 x 5.5 x 4.0 cm (EDGE) |
|---|---|
| Weight | 220 g (1100 mAh battery) / 250 g (2000 mAh battery) |
| Display | 64K Color TFT LCD, 320 × 240 px (QVGA) |
| Battery type | Rechargeable Lithium‑polymer, 1100 mAh or 2000 mAh |
| USB connection | Mini‑USB port for data and charging |
| Wireless options | 802.11b/g WLAN, Bluetooth®, GSM/EDGE radio |
Refer to section 1.4 "Inserting a Micro SD Card" for step‑by‑step instructions.
The Memor measures 15.2 × 5.5 × 4.0 cm for batch models and 16.5 × 5.5 × 4.0 cm for EDGE models.
Two rechargeable Li‑polymer batteries are offered: 1100 mAh and 2000 mAh.
The device supports 802.11b/g WLAN, Bluetooth®, and GSM/EDGE cellular radios.
