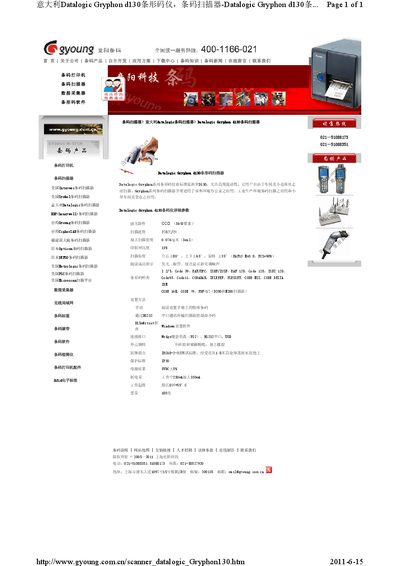

The Datalogic Gryphon d130 is a desktop barcode scanner with high mobility, CCD sensor, and multiple interfaces for retail and industrial use.
The Gryphon d130 is a standard desktop‑type barcode scanner designed for retail, office, industrial production, and small‑warehouse environments. It offers high mobility, allowing users to walk around a workshop or small warehouse while scanning.
Key specifications include a CCD sensor with 3648 pixels, a scanning speed of 270 scans per second, a maximum scan density of 0.076 mm (3 mil), and a wide scanning angle of ±80° horizontally and ±65° vertically. The device supports PS/2 keyboard emulation, RS‑232 serial, and USB interfaces, runs on 5 VDC power, and operates from 0 °C to +55 °C. This manual is written in Chinese.
| Sensor | CCD (3648 pixels) |
|---|---|
| Scanning speed | 270 scans/second |
| Maximum scan density | 0.076 mm (3 mil) |
| Print contrast | 15 % |
| Scanning angle | ±80° horizontal, ±65° vertical, ±35° rotation |
| Interfaces | PS/2 (keyboard emulation), RS‑232, USB |
| Power requirement | 5 VDC ±5 % |
| Current consumption | 250 mA (typical) up to 330 mA |
| Operating temperature | 0 °C to +55 °C |
| Weight | 180 g |
It supports PS/2 keyboard emulation (Wedge), RS‑232 serial, and USB connections.
The scanner operates at 270 scans per second.
It can read barcodes with a minimum density of 0.076 mm (3 mil).
It requires a 5 VDC supply with a tolerance of ±5 % and draws up to 330 mA.
