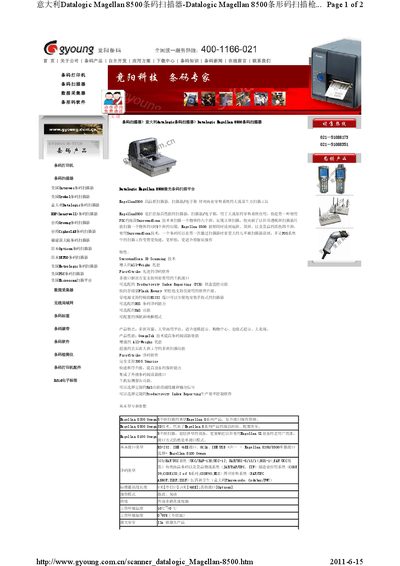

Product leaflet for the Datalogic Magellan 8500 laser barcode scanner featuring SurroundScan 3D technology for scanning six sides of an object.
The Datalogic Magellan 8500 is a high-performance laser barcode scanning platform designed for high-volume commercial retail systems. It utilizes PSC's SurroundScan 3D technology to scan all six sides of an object, overcoming the limitations of traditional scanners that only scan four or five sides. This capability allows for faster and easier scanning operations at POS systems. This manual is written in Chinese.
| Scanning Technology | SurroundScan 3D Scanning |
|---|---|
| Scanning Sides | Six sides (bottom, top, and four other sides) |
| Operating Modes | Push, Shake |
| Power Supply | External Multi-Channel DC Power |
| Operating Temperature | 10°C to 40°C |
| Operating Humidity | 0 to 95% (non-condensing) |
| Laser Safety Class | IIa Class |
| Standard Communication Cable Length | 4 meters |
It uses PSC's latest SurroundScan technology to scan all six sides of an object.
The scanner supports push and shake operating modes.
The standard communication cable length is 4 meters.
