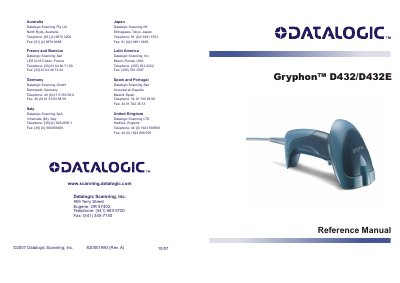

Datalogic Gryphon D432/D432E Reference Manual

This is English abstract

Brand: Datalogic
Document type: User Manual
Language: English
Pages: 164
File format: PDF
File size: 1 MB
Published: 06 August, 2012
Updated: 30 September, 2023
MD5 checksum: F2C29D3E6E00770B75EEAB7190E767BD
PDF: Datalogic Gryphon D432/D432E Reference Manual PDF

About this manual

The document serves as a comprehensive guide for the Gryphon™ D432/D432E hand-held reader. It details general views, compliance information regarding FCC rules and laser safety (Class 1 LED and Class 2 Laser), and warranty terms.

The manual provides instructions on using VisualSetup software to configure the device via RS232, Wedge, or USB interfaces. It explains normal operation modes including autoscanning, pattern mode, and stand autorecognition, as well as advanced data formatting and concatenation features.

What's inside

General View
Compliance (FCC/Laser)
Introduction
Using Gryphon D432/D432E
Aiming System
Configuration Methods
Initial Setup Interfaces
Maintenance
Technical Features

Specifications

Laser Class	Class 2 Laser Product
LED Illuminator Class	Class 1 LED product
Laser Wavelength	640-660 nm
Max Laser Output Power	0.25 mW

Frequently asked questions

What is the laser safety class of the Gryphon D432/D432E?

The aiming system meets the requirements for a Class 2 laser product, while the illuminator is a Class 1 LED product.

Which interfaces can be used to configure the device?

The device supports configuration via RS232, Wedge, or USB interfaces.

Download PDF (1 MB)
