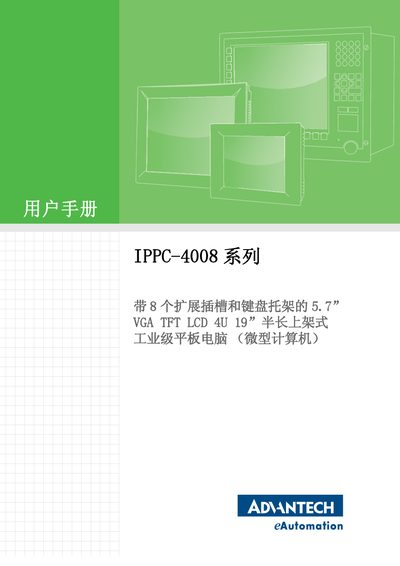

User manual for the Advantech IPPC-4008 industrial PC, covering specifications, safety instructions, installation steps and LED indicators.
The IPPC-4008 is a 4U, half‑size, 8‑slot rack‑mount industrial PC with a 5.7" VGA TFT LCD, built‑in thin keyboard and touch‑pad tray. This manual provides product specifications, safety guidelines, and detailed installation procedures.
Key sections include an overview of the hardware, step‑by‑step system installation, LED status explanations, and environmental operating limits. Technical data such as dimensions, power ratings, and connector details are listed for reference. This manual is written in Chinese.
| Dimensions (W x H x D) | 482 x 174.9 x 360 mm (19" x 7" x 14.2") |
|---|---|
| Power Input | 100~240 VAC @ 50/60 Hz, Max 10 A |
| Power Output | +5 V @ 30 A, +12 V @ 15 A, +3.3 V @ 28 A, -5 V @ 0.3 A, -12 V @ 0.8 A, +5 VSB @ 2 A |
| Power Rating | 300 W |
| Weight | 18 kg (39.6 lb) |
| LCD Size | 5.7" |
| LCD Contrast | 800:1 |
| LCD Brightness | 700 cd/m² |
| LCD Backlight Life | 50,000 hours |
| Operating Temperature | 0 ~ 50 °C (32 ~ 122 °F) |
| Storage Temperature | -20 ~ 60 °C (-4 ~ 140 °F) |
| Humidity Range | 10 ~ 85% RH @ 40 °C |
| Cooling Fans | 2 × 85 CFM fans with air filter |
Unplug the power cord, use a dry cloth, and do not use liquids or spray cleaners on the equipment.
The power‑status LEDs (green or orange) indicate the presence and normal condition of the +3.3 V, +5 V, +12 V, -5 V, and -12 V supply lines.
