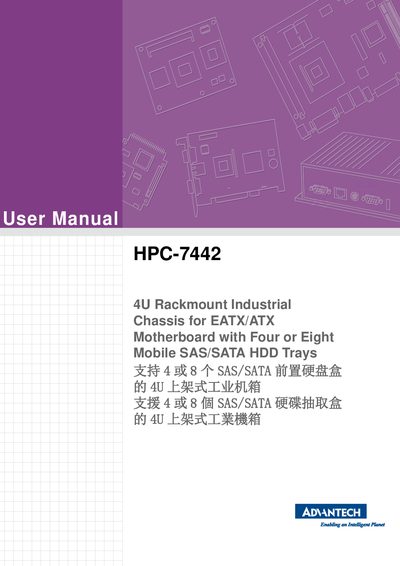

The Advantech HPC-7442 user manual provides setup, safety, specifications, and warranty information for the 4U rackmount industrial chassis.
This manual describes the Advantech HPC-7442 4U rackmount industrial chassis designed for EATX/ATX motherboards with four or eight mobile SAS/SATA HDD trays. It includes general product information, detailed installation steps, and a complete parts list.
Safety instructions, technical support contacts, and warranty terms are also covered. The document is intended for qualified personnel who install, configure, or service the chassis in industrial environments. This manual is written in Chinese.
| Operating temperature | 0 ~ 40 °C (32 ~ 104 °F) |
|---|---|
| Non‑operating temperature | -40 ~ 70 °C (-40 ~ 158 °F) |
| Humidity (non‑condensing) | 10 ~ 95 % @ 40 °C |
| Voltage inputs | +5 VDC, -5 VDC, +5 VSB, +3.3 VDC, +12 VDC, -12 VDC |
| Temperature sensor range | -30 ~ +125 °C (-22 ~ 257 °F) |
| Fan speed monitoring | 0 ~ 20000 RPM (up to 7 fans) |
Contact your dealer, describe the problem, obtain an RMA number, then pack the product with the repair card and proof of purchase and ship it prepaid to the dealer.
The chassis operates between 0 °C and 40 °C (32 °F‑104 °F) and can be stored at -40 °C to 70 °C (-40 °F‑158 °F).
It supports +5 VDC, -5 VDC, +5 VSB, +3.3 VDC, +12 VDC, and -12 VDC.
