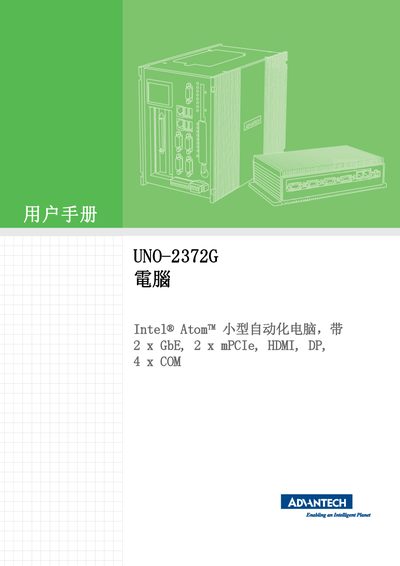

User manual for the Advantech UNO-2372G industrial computer, covering specifications, interfaces, safety and warranty.
The UNO-2372G series is a compact industrial computer based on Intel® Atom™ or Celeron® processors. It provides dual GbE ports, dual mPCIe slots, HDMI, DP and four COM interfaces, making it suitable for automation and embedded applications. The manual includes product introduction, hardware specifications, interface descriptions and configuration guidance.
Safety instructions, warranty information (two‑year guarantee) and technical support contacts are also provided. Users are advised to follow the safety measures, use shielded cables, and contact authorized service personnel for repairs. This manual is written in Chinese.
| Operating temperature | -20 °C to 60 °C |
|---|---|
| Power input voltage | 10 V to 36 V DC |
| Power consumption | Typical 14 W, Maximum 42 W |
| CPU | Intel® Atom™ E3845 (1.91 GHz) or Intel® Celeron® J1900 (2.0 GHz) |
| Memory | 4 GB DDR3L 1600 MHz |
| COM ports | 4 RS‑232/422/485 ports (COM1‑COM4) |
| USB ports | 4 ports (3 × USB 2.0, 1 × USB 3.0) |
| Ethernet | 2 × Gigabit LAN controllers (Intel i210) |
The product comes with a two‑year warranty from the date of purchase.
It provides four standard COM ports (COM1, COM2, COM3, COM4).
The device accepts an external DC input of 10 V to 36 V.
The board has four USB ports: three USB 2.0 and one USB 3.0.
