Advantech MIC-3325 3U CompactPCI Blade Computer User Manual

The Advantech MIC-3325 user manual provides hardware configuration, BIOS settings, interface descriptions, safety instructions, and installation steps for…

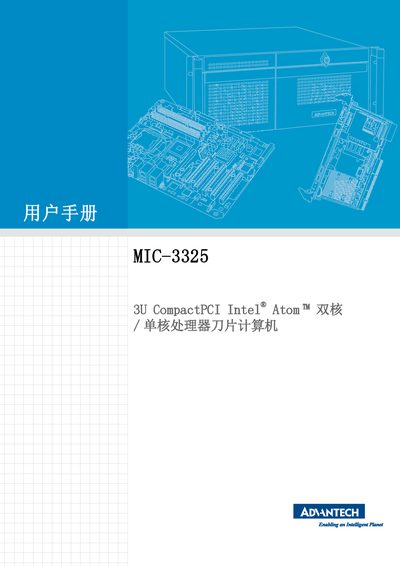

Advantech MIC-3325 3U CompactPCI Blade Computer User Manual - cover page
Brand
Advantech
Document type
User Manual
Language
Chinese
Pages
54
File format
PDF
File size
2.8 MB
Published
30 September, 2026
Updated
30 September, 2026
MD5 checksum
3F3311BF68F58814EFAD3EDC77C4E4AF
PDF
Advantech MIC-3325 3U CompactPCI Blade Computer User Manual PDF

About this manual

The MIC-3325 is a 3U CompactPCI blade computer from Advantech that integrates an Intel Atom dual‑ or single‑core processor, onboard DDR3 memory, and multiple I/O options. This manual guides users through safe handling, hardware setup, and system configuration.

Key sections cover hardware specifications, AMI BIOS configuration, detailed interface pin‑outs, safety measures, installation procedures, and CPLD programming information, helping engineers deploy the board in industrial, military, or transportation environments. This manual is written in Chinese.

What's inside

  • Hardware Configuration
  • AMI BIOS Settings
  • Interface Description
  • Safety Measures
  • Installation Steps
  • CPLD Information
  • Appendix A – Pin Definitions
  • Appendix B – CPLD

Specifications

Memory2 GB DDR3‑800 SDRAM (on‑board)
Storage Interfaces2 SATA ports and 1 CF slot
PCI Bus32‑bit / 33 MHz, up to 8 CompactPCI slots
