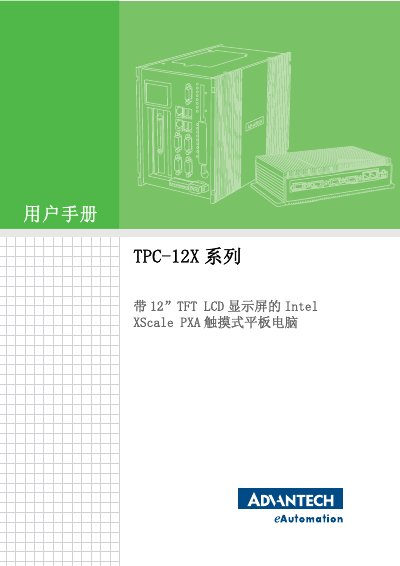

The Advantech TPC-12X series user manual provides product overview, specifications, installation, tuning, and Windows CE support for the 12‑inch touch panel PC.
The TPC-12X series is a fan‑less, 12.1‑inch touch‑screen panel PC built on an Intel XScale PXA 270 processor with 64 MB NAND flash and optional CF card storage. It offers multiple I/O options, including serial, RS‑485, Ethernet, USB, and CAN‑Bus, and runs Windows CE with JVM support.
The manual covers system overview, hardware specifications, installation steps, LCD and touch‑screen tuning, power and safety guidelines, networking configuration, and application development tools. Appendices provide detailed information on the watchdog timer, fuse specifications, pin definitions, and visual settings. This manual is written in Chinese.
| CPU | Intel XScale PXA 270, 520 MHz |
|---|---|
| Display Size | 12.1‑inch TFT LCD |
| Display Brightness | 340 cd/m² |
| Touch Screen Type | Resistive, hardened glass |
| Input Voltage | 18 ~ 32 VDC |
| Maximum Current | 3.5 A (typical 24 VDC @ 0.8 A) |
| Serial Ports | 3 ports (2 × RS‑232, 1 × RS‑485 or RS‑232) |
| USB Ports | 2 × USB 1.1 (Host and Client) |
| Storage | 64 MB NAND flash + optional CF card |
The TPC-12X series uses an Intel XScale PXA 270 processor running at 520 MHz.
The panel PC provides three serial ports: two RS‑232 ports and one port that can be configured as RS‑485 or RS‑232.
