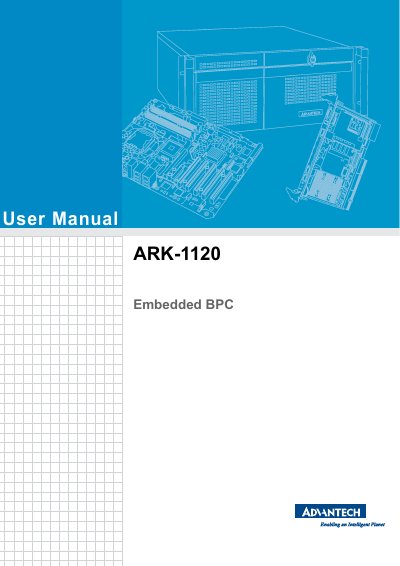

The Advantech ARK-1120 Embedded BPC User Manual provides installation steps, BIOS configuration, safety guidelines, warranty information, and technical…
This manual describes the Advantech ARK-1120 Embedded BPC, an industrial‑grade single‑board computer. It covers general product features, mechanical dimensions, environmental limits, and power requirements.
The document guides users through hardware installation, jumper settings, I/O connections, BIOS setup, and includes safety instructions, warranty terms, and technical support contacts. An appendix provides sample code for the watchdog timer and GPIO.
| Minimum power input | DC 12 V 3 A |
|---|---|
| RTC battery | 3 V / 210 mAh |
| Operating temperature | 0 ~ 40 °C (32 ~ 104 °F) |
| Storage temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Relative humidity | 95 % @ 40 °C (non‑condensing) |
The system requires a minimum input of DC 12 V at 3 A, and uses a 3 V/210 mAh RTC battery.
Visit Advantech’s support website at www.advantech.com/support or contact your distributor or sales representative.
The device operates between 0 °C and 40 °C (32 °F – 104 °F).
