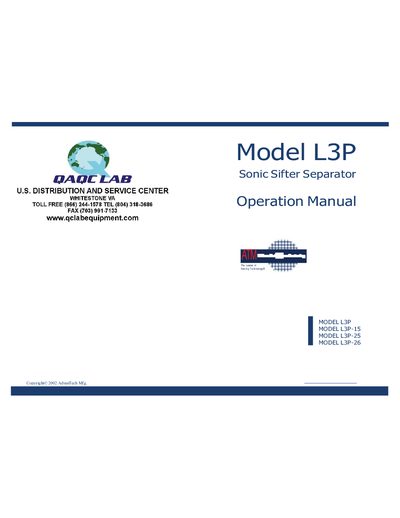

The AdvanTech L3P Sonic Sifter Separator Operation Manual provides setup, operation, maintenance, and warranty information for the L3P series.
This manual covers the specifications, installation, and operating procedures for the ATM Model L3P Sonic Sifter Separator. It includes detailed instructions for testing, control panel operation, timer settings, and the use of the Sift/Pulse and amplitude controls.
Additional sections describe proper care of the unit and accessories, cleaning methods, warranty terms, and a listing of available sieve sizes and accessories. Safety cautions and service guidelines are also provided for qualified personnel.
| Voltage (L3P) | 120 volts, 60 Hz |
|---|---|
| Voltage (L3P-15) | 120 volts, 50 Hz |
| Voltage (L3P-25) | 240 volts, 50 Hz |
| Voltage (L3P-26) | 240 volts, 60 Hz |
| Motor Power | ¼ horsepower electric motor |
| Weight | 43 lb (20 kg) |
| Cabinet Dimensions | 23"h x 10"w x 12"d (61 cm x 25 cm x 31 cm) |
The L3P-15 model operates on 120 volts at 50 Hz.
The timer can be set between 1 second and 99 minutes in various increments.
