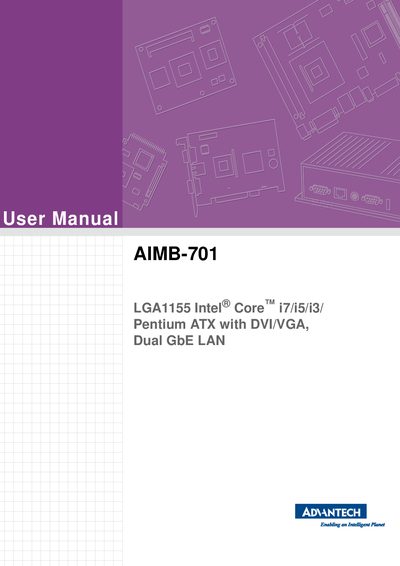

The Advantech AIMB-701 user manual provides hardware setup, BIOS configuration, and specifications for this industrial ATX motherboard.
This manual guides users through installing, configuring, and maintaining the Advantech AIMB-701 motherboard, an ATX board designed for industrial environments. It includes safety information, warranty details, and a checklist of items shipped with the product.
The document covers hardware configuration, peripheral connections, BIOS settings, driver installation, VGA and LAN setup, as well as appendices with watchdog timer programming and detailed I/O pin assignments.
| System Chipset | Intel H61 PCH |
|---|---|
| Maximum RAM | 16 GB DDR3 1066/1333/1600 |
| PCIe Slots | 1 × PCIe x16, 1 × PCIe x8 (x1 or x4 link) |
| USB Ports | Up to 10 USB 2.0 ports, 480 Mbps |
| Ethernet | Dual Gigabit Ethernet (GbE) LAN |
| Graphics | Intel HD Graphics, up to 1 GB shared memory |
| DVI‑D Output | 1920 × 1200 @ 60 Hz (G2 version) |
| CRT Output | 2048 × 1536 @ 75 Hz |
The board supports up to six serial ports: one RS‑232/422/485 port with hardware flow control and three standard RS‑232 ports.
The AIMB-701 can accommodate up to 16 GB of DDR3 memory in two DIMM sockets.
It includes dual Gigabit Ethernet (GbE) LAN ports.
