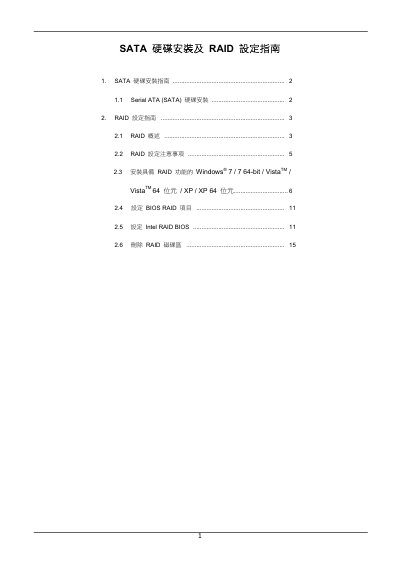

Intel Z68 SATA RAID Service Manual

This document is about SATA hard disk installation and RAID setup guide of Intel Z68 motherboard.

Brand: SATA
Document type: Service Manual
Language: Chinese
Pages: 15
File format: PDF
File size: 834 KB
Published: 04 November, 2011
Updated: 30 September, 2023
MD5 checksum: 1FFF2F62D8DC0C093E3484D8457107AF
PDF: Intel Z68 SATA RAID Service Manual PDF

About this manual

The manual provides step‑by‑step instructions for installing Serial ATA (SATA) hard drives, including hardware preparation and connection of up to four SATA ports. It also describes BIOS configuration for enabling RAID mode and preparing the system for RAID operation.

Detailed RAID configuration procedures are covered, including supported RAID levels (0, 1, 10, 5), creation of RAID volumes, use of Intel Rapid Storage, and how to delete existing RAID volumes. The guide includes OS installation notes for Windows XP, Vista, and Windows 7 in RAID environments. This manual is written in Chinese.

What's inside

Serial ATA (SATA) Installation
RAID Overview
RAID Configuration Guide
RAID Configuration Notes
Operating System Installation
Creating RAID Volume
Deleting RAID Volume

Specifications

Supported chipset	Intel Z68
Minimum disks for RAID 5	3 identical disks
Sample RAID volume size	128 KB block, 223.5 GB total

Frequently asked questions

How many disks are required to create a RAID 5 array?

At least three identical disks are needed for RAID 5.
