Introduces the features of Taranis X9D Plus 2019/Taranis X9D Plus SE 2019, including menu navigation and safety precautions.

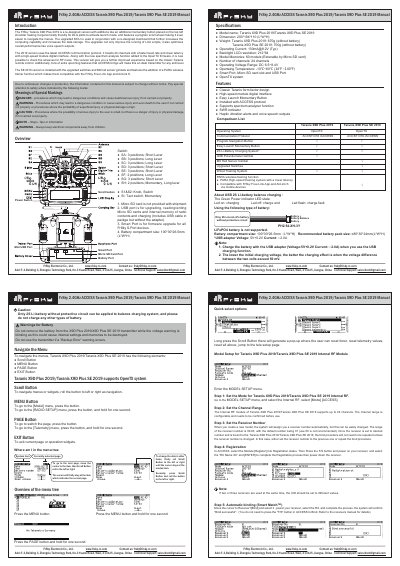

This manual covers the FrSky Taranis X9D Plus 2019 and Taranis X9D Plus SE 2019, which feature the ACCESS communication protocol and OpenTX system. The 2019 version includes an additional momentary button for launch mode and a program scroll wheel, while the SE 2019 version features upgraded switches, M9 hall sensor gimbals, and a PARA wireless trainer function.
| Number of channels | 24 channels |
|---|---|
| Operating Voltage Range | DC 6.5~8.4V |
| Operating Temperature | -10°C~60°C |
| Model Memories | 60 models |
| Backlight LCD resolution | 212*64 |
| Weight (2019 version) | 670g |
| Weight (SE 2019 version) | 700g |
Only 2S Li-Po battery without protective circuit can be applied to the balance charging system.
Use the Scroll Button to roll left or right, the MENU button to enter specific menus, and the PAGE button to switch pages.
It is an additional button placed on the top left shoulder to activate launch mode ergonomically for DLG pilots.
